Frame Filter Component

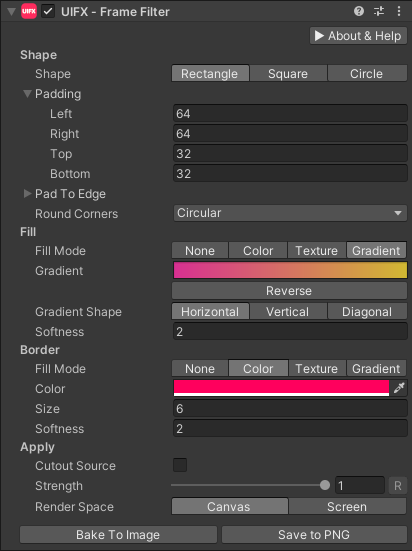

Component Screenshot

Overview

This component enables easily adding a framed outline to UI components. It supports automatic resizing to fit the content, padding, different shapes, anti-aliased rendering, and rounded corners.

WebGL Demo

Properties

Component Screenshot

Property                            Type    Range    DefaultDescription
Shape
    ShapeEnumRectangleThe base shape to render around the source content. Options are:
Rectangle: Has the most flexibility.
Square: Ensures the frame has equal width and height.
Circle: Ensures the frame has constant radius.
    PaddingFloat[-inf..inf]16.0For each Rectangle edge expands the edge length in pixels. For Square and Circle shapes this is a single value that controls radius padding.
    Pad To EdgeBoolFalseFor each Rectangle edge allows padding value to be ignored and instead extends the length to the screen edge.
    Round CornersEnumNoneThe type of rounded corners to use for the Rectangle or Square shapes. Options are:
None: No rounded corners.
Small: 12.5% rounded corners.
Medium: 25% rounded corners.
Large: 50% rounded corners.
Circular: 100% rounded corners
Percent: Value between 0..1 relative to the size of shape.
Custom Percent: Specify each of the 4 corner sizes in 0..1 range.
Pixels: A single value in pixel units.
Custom Pixels: Specifyt each of the 4 corner sizes in pixels.
Fill
    ColorColorBlackThe color to fill the frame with.
Border
    SizeFloat0.0The size of the border in pixels.
    ColorColorWhiteThe color to fill the border with.
Apply
    Cutout SourceBoolFalseWhether to render the source graphic on top of the frame, or to use the source graphic to make a hole in the frame.
    StrengthFloat[0..1]1.0Strength of the effect.

Usage

Add this component to any GameObject that contains a UI Graphic component (eg Text, Image, RawImage, etc). The object will now render with a shadow.

Usage with TextMeshPro

To use this filter effect with TextMeshPro use the Filter Stack (TextMeshPro) component.
