Collider Raycaster Component

Overview

This component allows Mouse Party to have multi-mouse interaction with Unity's Collider and Collider2D components causing standard MonoBehaviour mouse events to trigger such as MonoBehaviour.OnMouseEnter(), MonoBehaviour.OnMouseExit(), MonoBehaviour.OnMouseDown() etc.

Because the standard MonoBehaviour mouse events don't contain any information about which mouse caused the event, this component also supports Mouse Party events which do contain this information. To use these simply implement the events from the interfaces:

• IMousePartyEnterHandler
• IMousePartyExitHandler
• IMousePartyOverHandler
• IMousePartyDownHandler
• IMousePartyUpHandler

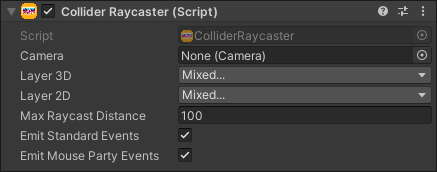

Properties

Property	Type	Range	Default	Description
Camera	Camera		null	The camera to use for raycasting the cursors. If this is null, Camera.main will be used.
Layer3D	LayerMask			The layers to include in the raycasting for Collider objects.
Layer2D	LayerMask			The layers to include in the raycasting for Collider2D objects.
Max Raycast Distance	Float		100.0	The maximum distance to raycast for Collider objects.
Emit Standard Events	Bool		True	Calls the MonoBehaviour methods such as OnMouseDown etc.
Emit Mouse Party Events	Bool		True	Calls the implemented Mouse Party events eg IMousePartyDownHandler.
